SNB FP 10000 DSP con filtri FIR Versione 2024



Nuovissimo Amplificatore di potenza Fp 10000Q con DSP è Filtri FIR per una gestione della Fase dei Sistemi audio. DSP progettato in Germania per una affidabilità estrema ad un prezzo competitivo.

Come tutti i nostri prodotti  venduti sul nostro portale , non mancano i 2 anni di garanzia ufficiale italiana più un aggiuntivo anno di garanzia fornito dal produttore per i finali di Potenza.





Model : DSP10000Q

8Ω Stereo Power1350WX4CH

4Ω Stereo Power2100WX4CH

digital input1 x AES/EBU; 0dBFs=+21dBu

Amplifier TypeProfessional DSP Power Amplifier

FilterFIR filter

Channels4 channesl power amplifier

1.48kHz sampling frequency DSP processor, 24-bit A/D and D/A conversion; 4 inputs and 4 outputs DSP module;

2. The input mode can choose analog input, AES digital signal input, and DANTE input. Different signals can be input at the same time. It is equipped with an automatic switch and can set the signal priority.

3. The output channel temperature is visually displayed on the display screen, and the temperature status of the power amplifier can be monitored at any time.

4. Output amplifier protection indicator light, the PRO indicator light is always on when the amplifier is in protection state.

5. Quick copy function; copy the adjusted parameters to other channels.

6. Configure signal generator; white noise; pink noise; sine wave signal.

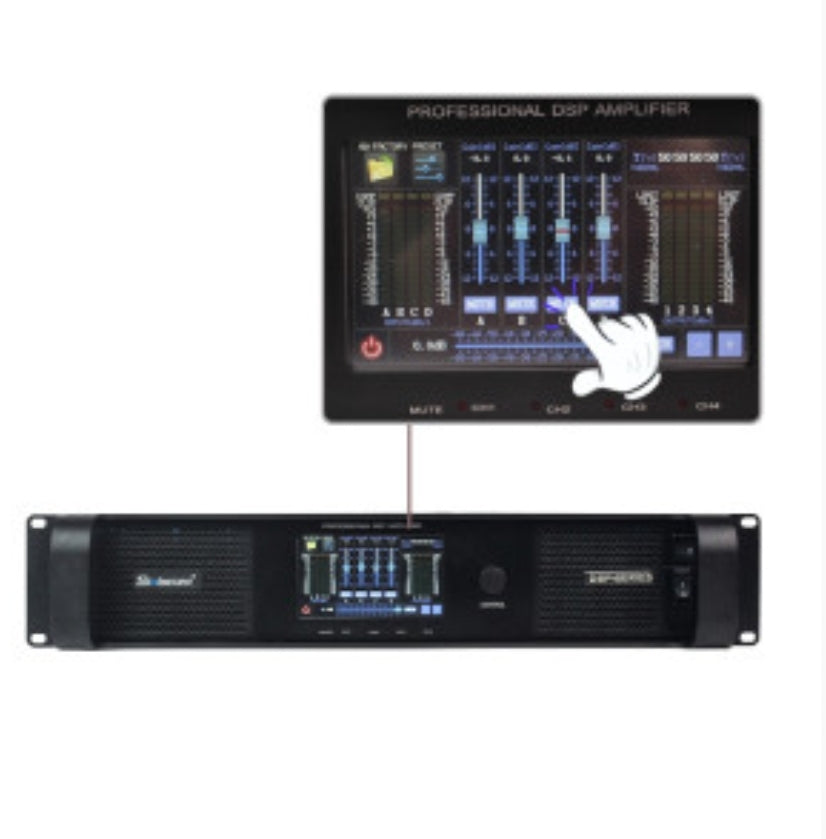

7. The 2U panel is equipped with a 4.3-inch touch screen, which can directly adjust the parameters to be adjusted by touch or connect to a computer to control through PC control software;

8. The operation panel can store 30 kinds of user programs, which can be called quickly and conveniently.

9. The device can be locked through software or panel to prevent misoperation

####### DSP processor parameters ######

parametric equalizer

Input with 7-band parametric equalization

Output with 7-band parametric equalization

Automatic phase correction FIR

Asymmetry, 512Taps, automatic phase correction FIR, perfectly compatible with third-party application software

Equalizer type

All equalization filters can be set to LOW PASS Filter; High Pass Filter; PEQ; All Pass

equalizer gain

Range: -15dB ~+15dB, step accuracy: 0.1dB

Center frequency

Adjustable with 1Hz step accuracy within the 20Hz~20kHz frequency band

Q value/broadband

Q value range: 0.3~15, step is 0.1

Input & output gain

Range: -12dB~+12dB, step accuracy: 0.1dB

High and low pass filtering of IIR frequency division part

Butterworth slope 12/24/48 dB selectable

Bessel slope 12/24/48 dB optional

Linkwitz-Riley slope 12/24/48 dB selectable

High-pass/low-pass/band-pass filters for the FIR crossover section

Type: High-pass/low-pass/band-pass filter optional

Taps range: 256 ~ 512,

Minimum attenuation to -120dB

Time window type: Rect/Sinc/Keiser/Hanning/Hamming/Blackman/Nuttal/Sine optional

noise generator

White/pink noise/sine wave generator, level range: -40dBu~0dBu

Output COMP compressor

Selectable ratio range: 1.00:1~INF:1; inflection point: 0~100%

Mode type: hard pressure; medium; soft pressure

Supply range: -12dBu~+12dBu

Start control time: 0.1ms~500ms; Release time: 0.001ms~2000ms

Output peak pressure limit

Threshold range: 20dBu~-10dBu

Start control time: 0.1ms~900ms; Release time: 0.04s~6s

Noise floor

-90 dBu
