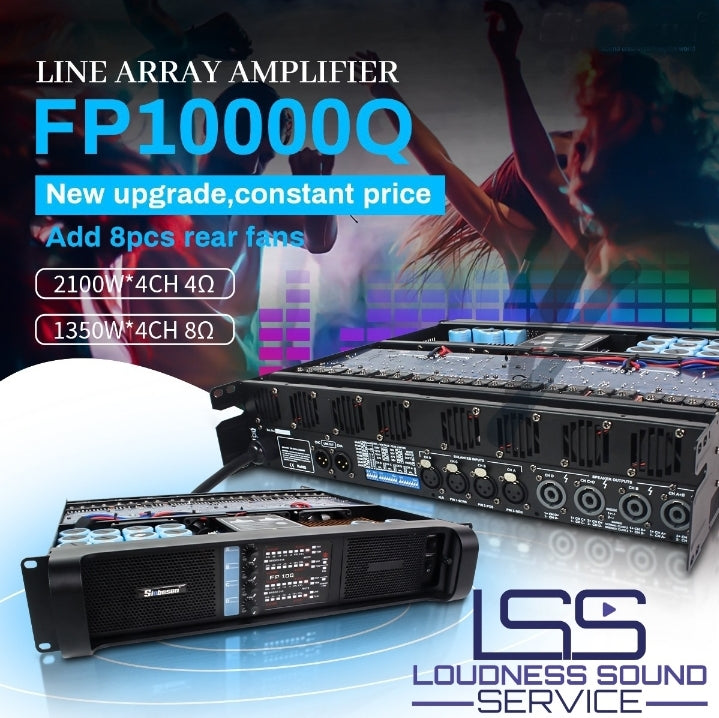

Amplificatore finale di Potenza serie- Fp 10000q NUOVA VERSIONE

Finale di potenza dalle elevate prestazioni. capace di erogare fino a 5000 watt in rms x2 in 4 ohm.

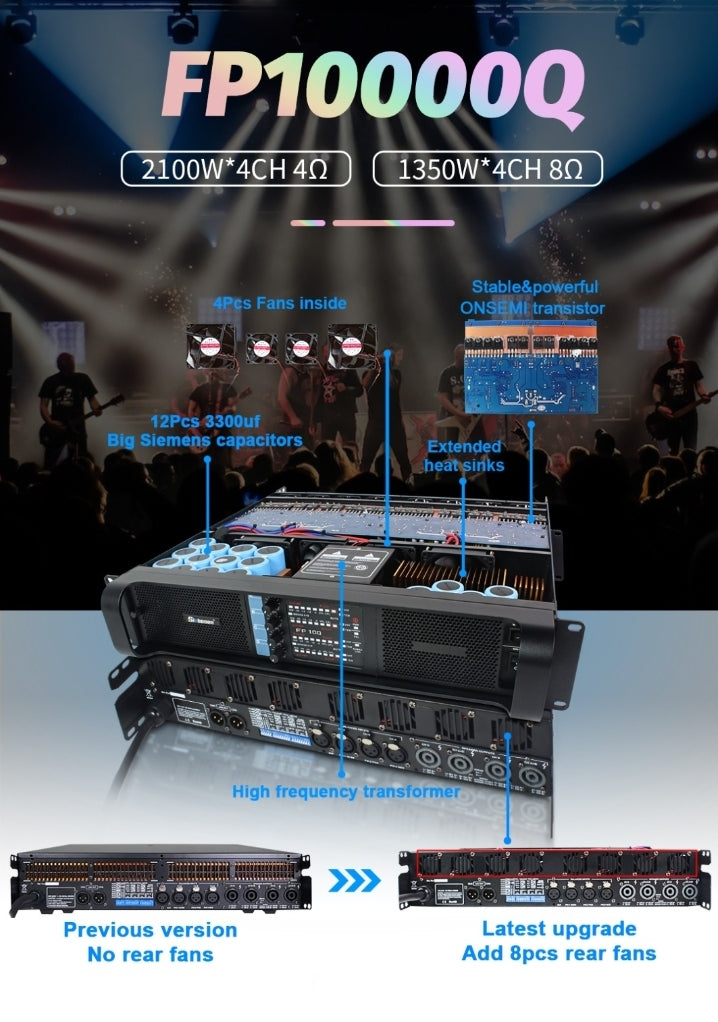

Disponibile già  con L'upgrade sulla dissipazione del calore per maggiore stabilità ed efficienza

Caratteristiche:

Fp 10000 Q

Channels

4 input channels + 4 output channels

8Ω Stereo Power

1350W X4

4Ω Stereo Power

2100w X4

8Ω Bridged Power

4200w X2

4Ω Bridged Power

5000w X2

Frequency Response(+o/-0.3dB,1W/8Ω)

20 Hz - 34 kHz

THD 20 Hz - 20 kHz for 1 W

<0.1%

Signal-to-Noise Ratio

>112 dBA

Channel separation (Crosstalk) at 1 kHz

>70 dB

Input Connectors (per channel)

3-pin XLR, electronically balanced

Output Connectors (per channel)

Binding Posts 2-pole

Class

TD

TourClass Protection

ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input

Operating voltage

220 V / 110 V nominal ； 180-240 V / 90-130 V selectable

Voltage Gain(dB)

23, 26, 29, 32, 35, 38, 41, 44 dB selectable

Input impedance

20 kOhm

Level adjustment (per ch.)

Front-panel potentiometer, 31 position detented from -inf to 0 dB
