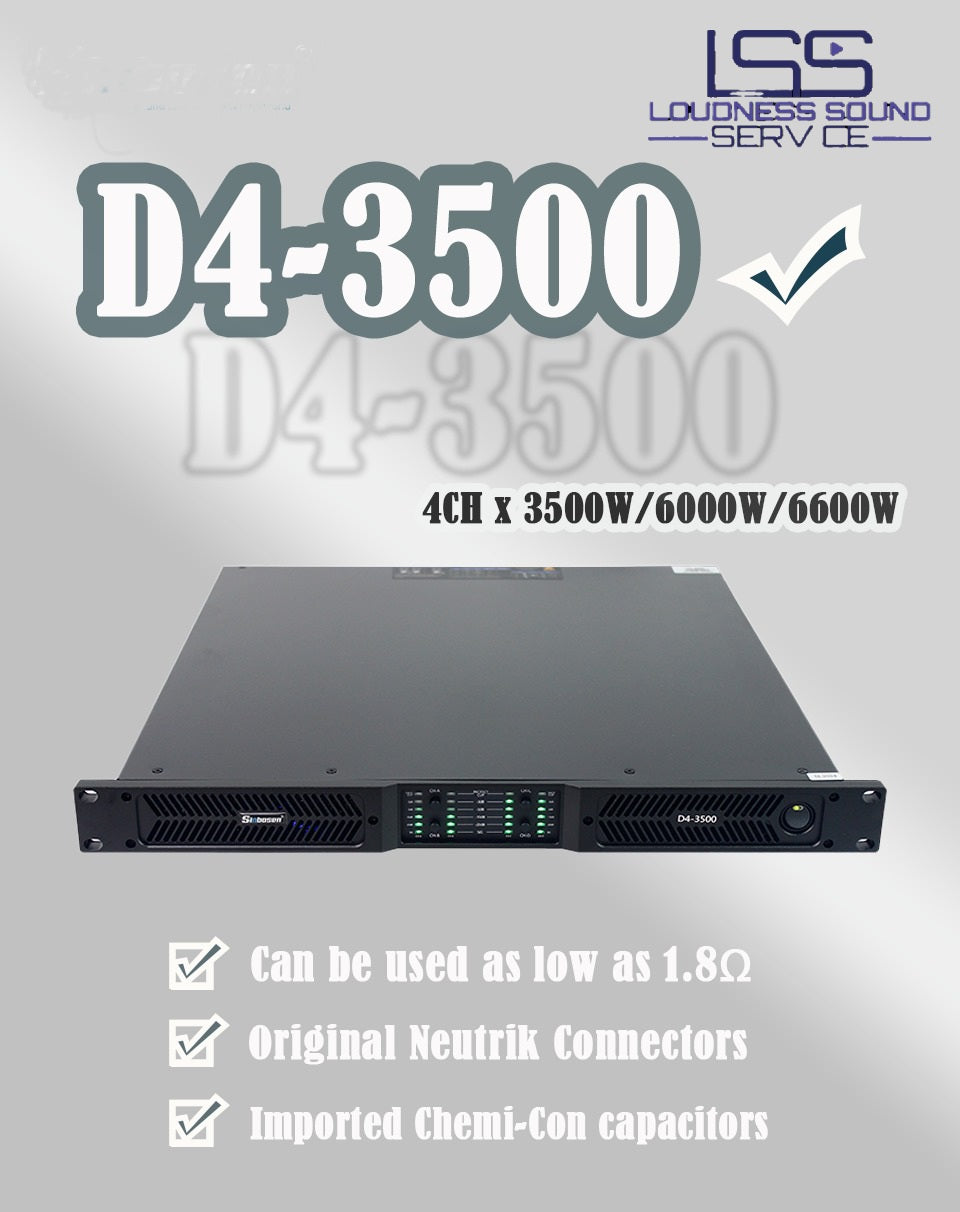

Finale di potenza D4-3500 4 ch

Finale di Potenza D4-3500 – Prestazioni Estreme, Affidabilità Totale

Il D4-3500 è un amplificatore a 4 canali progettato per offrire prestazioni audio eccezionali in qualsiasi contesto professionale. Con una potenza RMS impressionante – 3500 watt per canale su 8 ohm, 6000 watt su 4 ohm e 6500 watt su 2 ohm – garantisce una resa sonora potente, pulita e stabile.

Dotato di tecnologia avanzata basata su transistor al nitruro di gallio (GaN), il D4-3500 unisce alta efficienza energetica e massima affidabilità operativa, anche nelle condizioni più impegnative.

Ideale per impianti audio professionali, eventi live e installazioni fisse, questo amplificatore rappresenta la scelta perfetta per chi cerca prestazioni di alto livello senza compromessi.

Power PFC Power

Rated power demand 100-240V±10%, 50/60Hz

Operation voltage 90V-270V

Power correction factor cos(φ) >0.95 @ >500W

Standby 47W and 0.8A

Gain,Sensitivity 32dB,35dB,38dB,41dB

Maximum Output Voltage/Current 185V/85A (370V in the BRIDGE MODE)

Power Comsumption 230V (115V in the BRIDGE MODE)

Temperature

Environment temperature 0°-45C / 32′-113*F

Cooling system Tunnel through cooing system

Performance

Frequency Response 20Hz - 20kHz (1W@8Ω,+05 dB)

Signal-to-Noise Ratio >110 dBA (20 Hz- 20 kHz A weighted)

Crosstalk >66 dB @ 1 kHz

Input Impedance 10 kΩ balanced

Total Harmonic Distortion(THD) <0.5% from 1 W to full power (Typitcal value<0.05%)

Intermodulation Distortion(IMD) <0.5% from 1 W to full power (Typical value< 0.05%)

Damping Factor (8 ohms) >5000 @ 20-200 Hz

Slew Rate 50V/μs @ 8Ω

Front Panel

Indicator LED/per channel One PCS Green LED: the input signal of XLR ≥ -40dB;

Four pieces Green LED：

display the output signal(-20dB,-10dB,-5dB,-3dB)of SPEAKON

1 piece dual LED(Yellow and Red):

Protective state/Clip stste/Over heat/Over load

Power Switch Press "I"-on; Press "O"-off.

Dust-proof Two pieces dust-proof cotton,

it can take off to clean from the bottom of front pannel

Application

Signal in-connection 4 Channel: One balanced XLR(with lock)female per channel;

2 Channel One balanced XLR(with lock)female

and one balanced XLR male per channel.

Signal out-connection One SPEAKON per channel connect to loudspeakers

Power cord Fited to the device, and the CSA(cross sectional area)of the cord is 3 x 2.5mm²,

and the card is 1.5 meters long.

Multiple-Functions Switch Two Sensitivity Switches. One Mode Switch and one Clip Switch.

Structure(The size and weight depend on different series and shipping demand )

Dimensions 482 x 44 x 380mm³/482 x 44 x 470 mm³

Net weight 10Kg/12kg

Packing size 580 x 580 x 119mm³/615 x 615 x 119 mm³

Shipping weight 12Kg/14Kg
